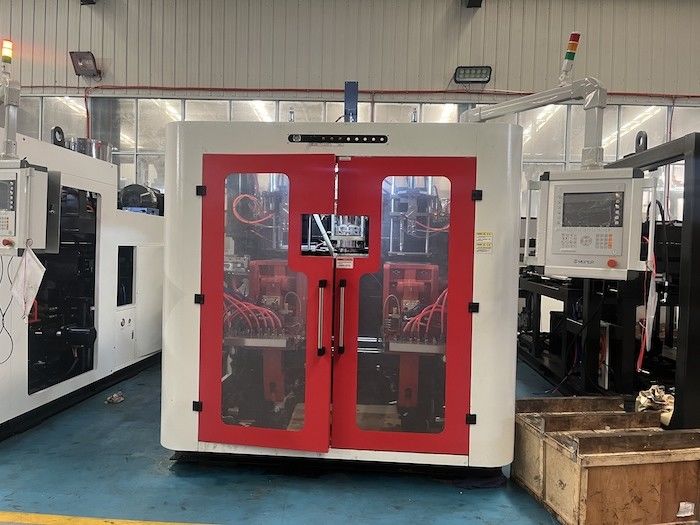

PE 90 Plasticizing Ability Extrusion Molding Machine MEPER 70DF

Product Description:

The MP plastic blow molding machine is designed for processing a variety of plastic hollow products made from high-molecule materials. This machine is capable of creating hollow products ranging from 5 milliliters to 100 liters in size. The scope of products that can be produced includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.

One of the key features of the MP plastic blow molding machine is its versatility in working with different materials. It can handle various types of plastics such as PE, PP, PVC, PA, PC, PS, and EVA. Additionally, the machine ensures a high-quality manufacturing process, resulting in excellent final products.

Features:

a) The extruding device utilizes a variable frequency motor to cater to the changing rotation requirements of the screw during the blowing process. A screw with a high slenderness ratio can process various materials efficiently, with excellent plasticizing ability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.

b) By fitting different heads in a combined extrusion system between two machines, it is possible to produce blown products with a visible strip line or double layers.

c) The mould clamping device is equipped with a toggle type and linear guider. With a double station setup, the mould platen moves swiftly and steadily.

d) The hydraulic oil loop system has undergone an improved design, resulting in power savings, rapid operation, and stability.

e) Hydraulic elements are simple to install and maintain. The machine includes a removable and mobile oil tank for convenience.

f) The entire machine is computer-controlled, with the hydraulic system featuring double proportional control. It also includes fault automatic alarm, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.

g) Three operation modes – "Manual," "Semi Auto," and "Full Auto" – are available for selection.

h) The safety door incorporates both electric and mechanical safety devices to prevent the mould from closing when the safety door is open, ensuring safe and reliable operation.

i) This machine offers two blowing functions – straight cutting and oblique cutting.

Technical Parameters:

System Item

Basic Parameter

Basic specifications

• Applicable materials: PE PP PVC PA…
• Max product volume: 5 L
• Number of heads: 1, 2, 3, 4 SET
• Machine dimension (LxWxH): 3.6×2.3×2.36 M
• Machine weight: 4.9 TON

Mould clamping system

• Mould clamping force: 90 KN
• Platen opening strokes: 180-480 MM
• Plate stroke: 300
• Max mould sizes(WxH): 400×420 MM

Extrusion system

• Screw diameter: 80 MM
• Screw slenderness ratio L/D: 24
• Plasticizing ability (HDPE): 90 KG/H
• Screw heating stage/zone: 4 Zone
• Screw heating power: 15.85 KW
• Screw fan power: 0.28 KW
• Extrusion motor power: 30 KW

Head

• Head heating stage/zone: 10 Zone
• Head heating power: 16.5 KW

Energy consumption

• Total machine power: 80 KW
• Oil motor power: 11 KW
• Air pressure: 0.6-0.8 MPA
• Compression air volume: 1.2 M3/H
• Cooling water volume: 0.4 M3/H

Applications:

MEPER 7D 70FD automatic extrusion blow molding machine is a versatile and efficient solution for various production needs. With its origin in China, this machine is CE/ISO9001:2008 certified, ensuring high quality and reliability.

Whether you are in the packaging industry, manufacturing industry, or involved in creating plastic products, the MEPER 7D 70FD is suitable for a wide range of applications. Its plasticizing ability of 90 with materials such as PE, PP, PVC, and PA make it a perfect choice for producing bottles, containers, and other plastic products.

The 4 cavity blow moulding machine allows for high volume production, making it ideal for businesses requiring large quantities of products within a short timeframe. The fully automatic operation of the machine ensures efficiency and consistency in the manufacturing process.

With a maximum product volume of 5L, mould clamping force of 90KN, and a screw diameter of 80mm, the MEPER 7D 70FD is capable of producing a wide range of products in various sizes and shapes. Its supply ability of 100 sets per month ensures that your production demands can be met efficiently.

When considering purchasing the MEPER 7D 70FD, keep in mind that the minimum order quantity is 1 set, and the price is negotiable. The machine comes with standard packaging for safe delivery, with a delivery time of 25-35 work days. Payment terms accepted include L/C and T/T, providing flexibility for your purchasing needs.

Packing and Shipping:

Product Packaging for Extrusion Molding Machine:

The extrusion molding machine will be carefully packed in a sturdy cardboard box to ensure safe transportation. The machine will be secured with foam padding to prevent any damage during shipping.

Shipping Information:

Once the order is processed, the extrusion molding machine will be shipped via a reputable courier service. A tracking number will be provided so you can monitor the delivery status of your package.

FAQ:

Q: What is the brand name of the Extrusion Molding Machine?

A: The brand name of the Extrusion Molding Machine is MEPER.

Q: What is the model number of the Extrusion Molding Machine?

A: The model number of the Extrusion Molding Machine is 7D 70FD.

Q: Where is the Extrusion Molding Machine manufactured?

A: The Extrusion Molding Machine is manufactured in China.

Q: What certifications does the Extrusion Molding Machine have?

A: The Extrusion Molding Machine is certified with CE/ISO9001:2008.

Q: What are the payment terms for purchasing the Extrusion Molding Machine?

A: The payment terms for purchasing the Extrusion Molding Machine are L/C and T/T.
