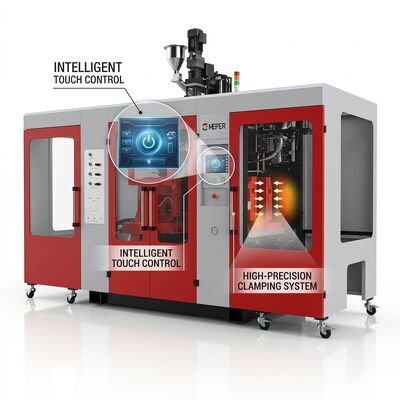

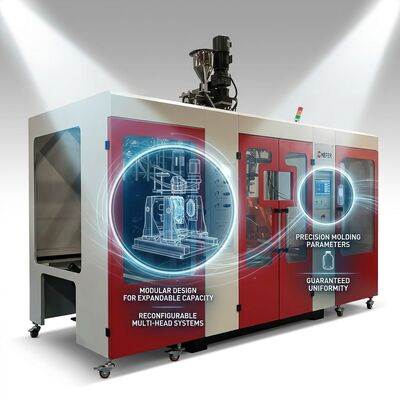

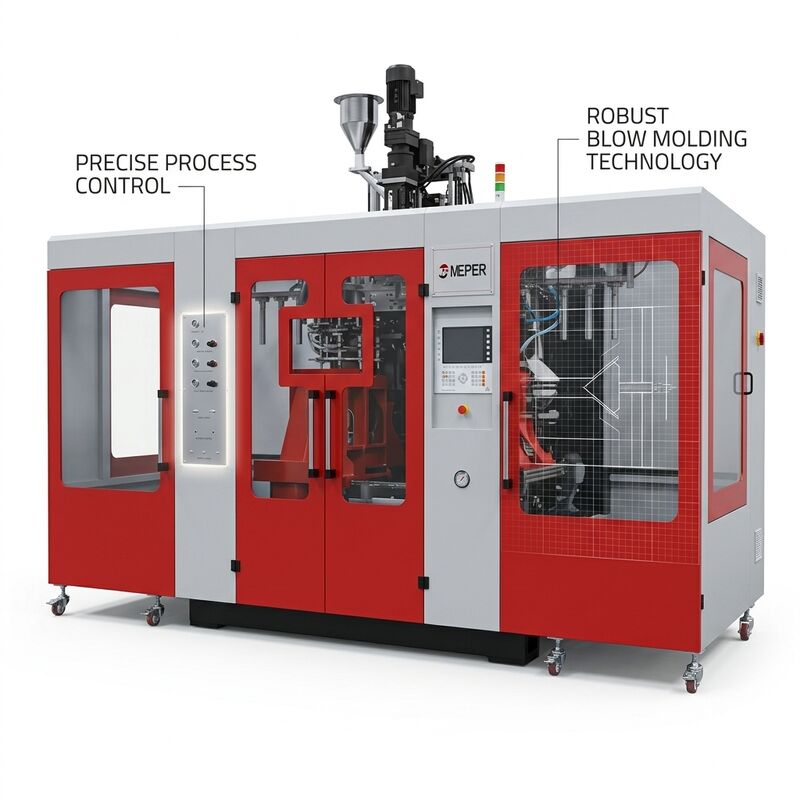

Large Container 100L PE Extrusion Blow Molding Machine MP100FD

The MEPER MP100FD is an industrial-grade extrusion blow molding machine engineered around a 100mm diameter screw extruder achieving 180kg/h plasticizing capacity for HDPE. With 200kN hydraulic clamping force, 750mm plate stroke, and 700x420mm maximum mold dimensions, this double-station machine handles large-format blow molding applications from 5ml to 100-liter product volumes. The 14-zone precision die head with 30kW total heating power, combined with 4-zone barrel heating at 17.4kW, provides the comprehensive thermal management essential for consistent parison formation across a wide range of materials including PE, PP, PVC, PA, PC, PS, and EVA. Built on a robust 17.4-ton machine base and powered by a 55kW extruder motor with 30kW hydraulic pump, the MP100FD delivers the production capability that demanding industrial blow molding operations require. The computer-controlled system with 40-mold program memory, double-proportional hydraulic control, and automated fault detection ensures reliable operation across continuous production cycles.

• Versatile 100L Volume Capacity: The 100mm screw extruder with 26:1 L/D ratio delivers 180kg/h plasticizing output, providing sufficient melt for large-volume container production up to 100 liters per cycle while maintaining wall thickness uniformity.
• 200kN Heavy-Duty Clamping System: Robust hydraulic clamping with 750mm plate stroke and 240-640mm platen opening range accommodates deep-draw molds for large containers, providing consistent closure force for thick-wall industrial products.
• 700x420mm Large Mold Platform: Generous mold mounting area supports large single-cavity molds for drums, barrels, and industrial containers, with positioning holes for rapid mold alignment and changeover.
• Multi-Material Processing Capability: The 100mm screw with 4-zone heating (17.4kW) processes PE, PP, PVC, PA, PC, PS, and EVA materials, providing flexibility for diverse large container manufacturing requirements.
• 14-Zone Precision Die Head Control: Independent PID-controlled heating zones (30kW total) provide precise thermal management for large parison formation, ensuring consistent material distribution across large mold cavities.
• Industrial-Grade 17.4-Ton Construction: The substantial machine weight dampens vibration during large-product molding cycles, maintaining mold alignment precision for consistent container quality in continuous production.
• Automated Production Integration: The 120kW total power system with 55kW extruder drive and 30kW hydraulic pump supports integration with robot take-out, auto-deflashing, and conveyor systems for complete automated large container lines.

The MP100FD excels in large container manufacturing operations producing industrial and commercial products up to 100 liters. Chemical drum manufacturers utilize the machine for 55-gallon and 220-liter PE drums with UN-certified designs for hazardous material transport. Agricultural chemical and fertilizer packaging operations produce large containers with reinforced handles and tamper-evident closures. Water storage tank and cistern manufacturers benefit from the machine's large mold capacity for producing residential and commercial water containers. Industrial waste container and garbage bin producers rely on the 200kN clamping and 700x420mm mold area for thick-wall container production. The machine's 180kg/h output supports operations requiring consistent high-volume production of large containers with uniform wall thickness and structural integrity.

Each MP100FD undergoes comprehensive factory acceptance testing including 48-hour continuous operation validation, parison weight consistency analysis, hydraulic system pressure retention testing, and complete thermal system calibration across all 18 heating zones. Export packaging utilizes ISPM-15 certified heavy-duty wooden pallets rated for the 17.4-ton machine weight, multi-layer VCI anti-corrosion protective film, high-density closed-cell foam impact protection at critical components, and bolt-on steel shipping brackets for container transport stability. Delivered accessories include complete maintenance toolkit, spare heating bands for all zones, hydraulic and pneumatic seal replacement kit, and comprehensive English-language technical documentation with electrical schematics, PLC parameter settings, and preventive maintenance schedule. CE and ISO9001:2008 certification documents provided. Standard 12-month warranty with remote technical support; extended warranty and on-site installation with operator training packages available worldwide.
