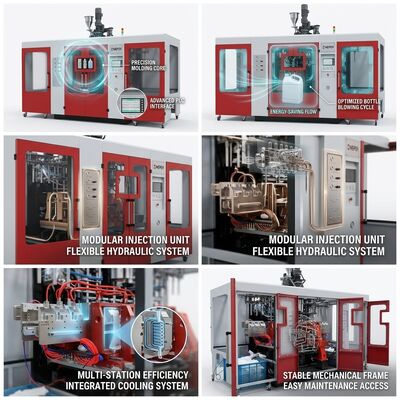

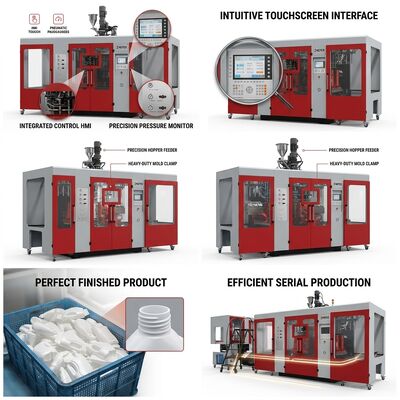

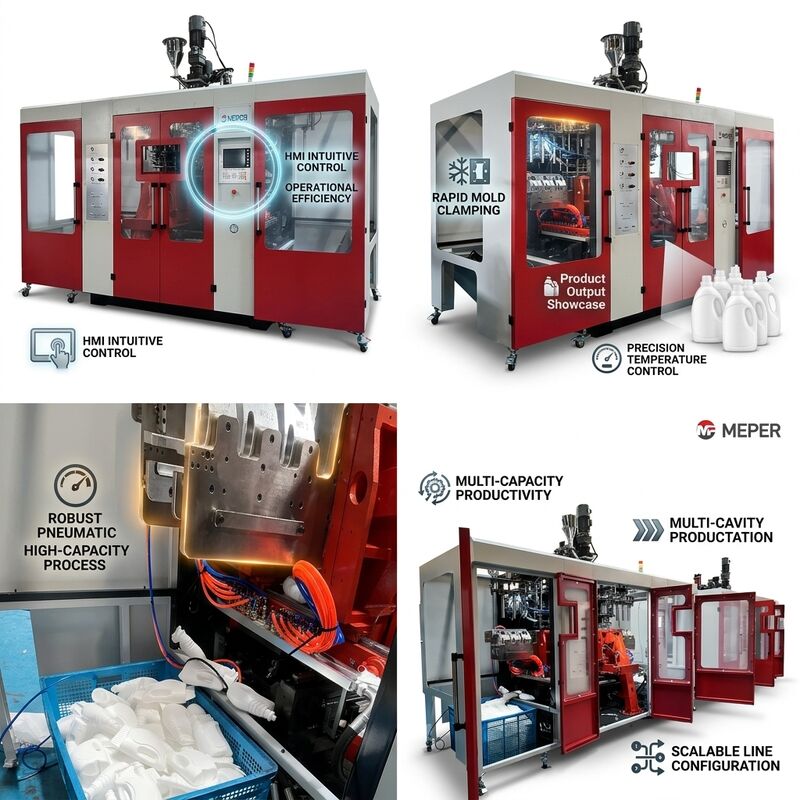

Heavy Duty 200kN Extrusion Blow Molding Machine 100mm MP100FD

The MEPER MP100FD is an industrial-grade extrusion blow molding machine engineered around a 100mm diameter screw extruder achieving 180kg/h plasticizing capacity for HDPE. With 200kN hydraulic clamping force, 750mm plate stroke, and 700x420mm maximum mold dimensions, this double-station machine handles large-format blow molding applications from 5ml to 100-liter product volumes. The 14-zone precision die head with 30kW total heating power, combined with 4-zone barrel heating at 17.4kW, provides the comprehensive thermal management essential for consistent parison formation across a wide range of materials including PE, PP, PVC, PA, PC, PS, and EVA. Built on a robust 17.4-ton machine base and powered by a 55kW extruder motor with 30kW hydraulic pump, the MP100FD delivers the production capability that demanding industrial blow molding operations require. The computer-controlled system with 40-mold program memory, double-proportional hydraulic control, and automated fault detection ensures reliable operation across continuous production cycles.

• Industrial 200kN Clamping Force: The hydraulic clamping system delivers 200kN of mold closure force, sufficient for large single-cavity molds producing heavy-duty industrial containers, automotive components, and structural blow-molded products.
• 750mm Extended Plate Stroke: The generous plate travel accommodates deep-draw molds and products with significant depth dimensions, with smooth hydraulic actuation preventing mold misalignment during rapid cycling.
• Robust 17.4-Ton Machine Construction: Heavy structural steel frame with precision-machined guide surfaces provides the rigidity needed for consistent clamping under the high forces generated during large-product blow molding cycles.
• 240-640mm Adjustable Platen Opening: The wide adjustment range supports molds of varying thicknesses from thin-wall containers to thick industrial parts, with positive mechanical stops ensuring repeatable positioning for each mold configuration.
• 55kW Industrial Extruder Drive: High-torque motor with gear reducer handles the processing demands of high-viscosity PE and PP grades used in heavy-duty container production, maintaining consistent output during extended production runs.
• Toggle-Type Clamping Mechanism: The mechanical advantage provided by the toggle linkage system amplifies hydraulic force at mold closure, delivering consistent 200kN clamping with energy-efficient 30kW hydraulic pump operation.
• Linear Guide Mold Shuttle: Precision linear bearing guides on the double-station shuttle ensure smooth, accurate mold positioning with minimal wear, maintaining alignment precision over years of heavy-duty production cycles.

The MP100FD machine's robust 200kN clamping and 17.4-ton construction make it the choice for demanding applications where lesser machines fail prematurely. Industrial container manufacturers producing thick-wall chemical drums and heavy-duty storage containers depend on the machine's structural integrity for consistent mold closure under sustained high-pressure conditions. Construction product manufacturers of road barriers, traffic cones, and safety equipment benefit from the large mold capacity for oversized blow-molded products. Marine and outdoor product manufacturers producing buoys, fenders, dock floats, and water sports equipment rely on the heavy-duty construction for large-part production with consistent quality. Agricultural equipment component manufacturers produce large seed hoppers, chemical tanks, and livestock feeding containers using the machine's multi-material capability for UV-stabilized and chemically resistant formulations.

Each MP100FD undergoes comprehensive factory acceptance testing including 48-hour continuous operation validation, parison weight consistency analysis, hydraulic system pressure retention testing, and complete thermal system calibration across all 18 heating zones. Export packaging utilizes ISPM-15 certified heavy-duty wooden pallets rated for the 17.4-ton machine weight, multi-layer VCI anti-corrosion protective film, high-density closed-cell foam impact protection at critical components, and bolt-on steel shipping brackets for container transport stability. Delivered accessories include complete maintenance toolkit, spare heating bands for all zones, hydraulic and pneumatic seal replacement kit, and comprehensive English-language technical documentation with electrical schematics, PLC parameter settings, and preventive maintenance schedule. CE and ISO9001:2008 certification documents provided. Standard 12-month warranty with remote technical support; extended warranty and on-site installation with operator training packages available worldwide.
